Veterinary Ophthalmology Slit Lamp Portable Veterinary Ophthalmic Slit Lamp Handheld Slit lamp

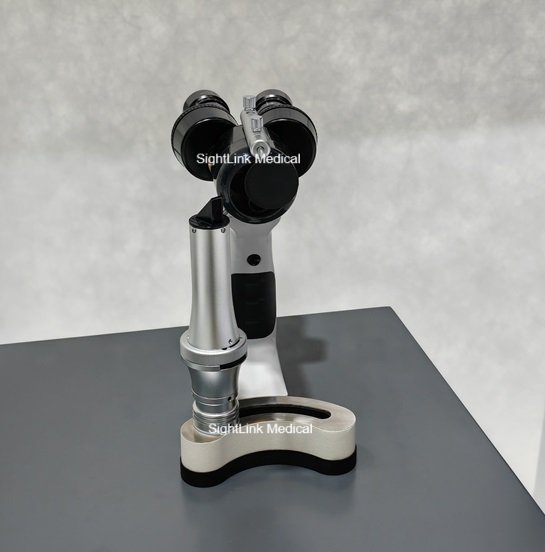

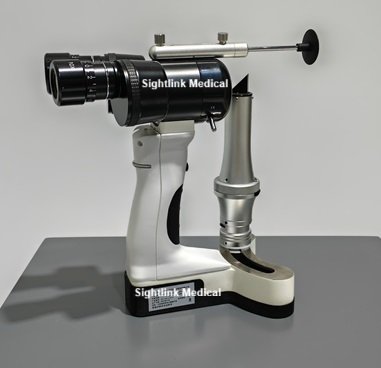

The YZ3 Portable Digital Slit Lamp Microscope is a lightweight (900g) and advanced veterinary ophthalmology device, featuring high illumination white LED, two-step magnifications (10×, 16×), and a rechargeable battery life of up to 6 hours. Its angular stereo optical design ensures comfortable observation and clear imaging. Equipped with multiple filters and adjustable settings, it offers precise diagnostics for animal eye health. Certified for medical device market access, ensuring compliance with quality standards for professional use in animal hospitals.
Description
The optical path the angular stereo design, the observation iscomfortable, the image is clear;
Lighting with LED light source,
Large battery capacity,uniform spot, easy to switch, long servicelife, patients feel more comfortable;
Total 900g weight, easy to operate and practical enough.
|
Microscope Type
|
Converging Microscope
|
|||
|
Objective Magnification
|
Two Steps Magnifications
|
|||
|
Objective Magnification
|
10×， 16×
|
|||
|
Diopter Adjustment
|
±8D
|
|||
|
Pupil Distance
|
50mm ~ 75mm
|
|||
|
Pupil Distance
|
60mm
|
|||
|
Slit Width
|
0mm ~ 12mm continuously adjustable
|
|||
|
Slit Angle
|
±30°
|
|||
|
Diameter of Light Spot
|
Φ12mm，Φ5mm，Φ1mm，Φ0.2mm
|
|||
|
Filers
|
Color Temperature Compensation, Redfree, Cobalt blue
|
|||
|
Light Source
|
LED
|
|||
|
Maximal Illumination
|
≥30000Lx
|
|||
|
Power Consumption
|
7.4Vd.c Secondary Li-ion Battery
|
|||
|
Working Duration
|
1.5 hours for common use (max illumination)
|
|||
|
Working Duration
|
275mm×243mm×255mm
|
|||
|
Working Duration
|
900g
|
|||
